3.81mm / 5.08mm PCB Spring Terminal Block HQ249 Screwless Feed Through Wire Connector

Name: 381mm 508mm PCB Spring Terminal Block HQ249 Screwless Feed Through Wire Connector
Brand: ZHONGYI
Price: 0.1 USD

Best 3.81mm / 5.08mm PCB Spring Terminal Block HQ249 Screwless Feed Through Wire Connector wholesale

Brand Name : ZHONGYI

Model Number : HQ249

Place of Origin : China

MOQ : 100pcs

Price : $0.1~$1 ＞100pcs

Payment Terms : T/T

Supply Ability : 10000pcs/week

Delivery Time : 1-3 work days

Packaging Details : carton box

Pitch : 3.81mm/5.08mm

Poles : from 1P

Wire guard : Phosphor bronze.Ni plated

Pin header : Brass. Tin plated

Housing : PA66.UL94V-0

name : 3.81mm / 5.08mm PCB Spring Terminal Block HQ249 Screwless Feed Through Wire Connector

Contact Now

3.81mm/5.08mm HQ249 screwless PCB spring terminal block feed through wire connector for sale

Electrical

Rated voltage	300V
Rated current	10A
Withstanding voltage	AC1500/1Min
Wire range	26-16AWG

Mechanical

Temp range	-40℃~+105℃
Max soldering	+250℃ 5 Sec
Strip length	10mm

Remarks:

Spring terminal blocks, the connection mode is divided into cage type spring and butterfly type spring connection, can be substituted with screw PCB terminal, increase the flexibility.

Customized service:

LOGO, please send us your logo,we can put it on the product.
 Packing, we accept customer's package,if you have specific requirement,please tell us.
 ODM/OEM, We are manufacturer, our engineer can help design according to your requirement.

Application:

PCB terminal is widely used in almost electronic equipment, such as relay,automation equipment,car,electricity box,new energy equipment,rail traffic.

3.81mm / 5.08mm PCB Spring Terminal Block HQ249 Screwless Feed Through Wire Connector

Product Tags:

feed through pcb spring terminal block

pcb spring terminal block 3.81 mm

5.08 mm terminal connector pcb

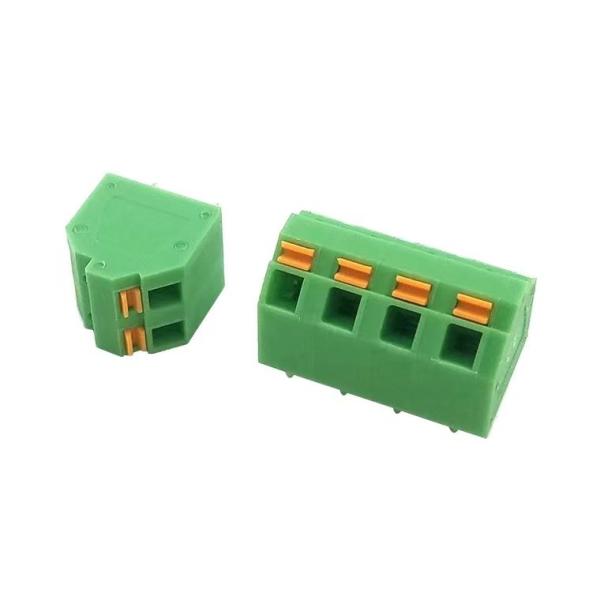

3.81mm / 5.08mm PCB Spring Terminal Block HQ249 Screwless Feed Through Wire Connector Images
